Version: v1.10

Validator Pre-Deploy Workflow

A customer opting into staking at an unknown time, is a key trigger for enterprise staking deployments. There are two primary ways these ad-hoc demands are programatically fulfilled, using smart contracts or using/generating the private keys.

Smart contracts such as an Obol Validator Manager (OVM) can re-assign their (beneficial) ownership; allowing a customer to activate a pre-created deposit for this smart contract.
A fresh DV cluster can be created, a DKG invite can be created for waiting DV-pods ready to partake, a charon add-validators command could be triggered to add extra keys to a running cluster, or charon deposit sign could be used to alter an unused validator's withdrawal address.

This guide will focus on the former, managing validators using Obol smart contracts, and their role based access control. This approach requires less coordination for multi-operator setups, and is simpler than creating or interacting with private key material on the fly by a remote trigger.

This guide will demonstrate the key steps in preparing a DV cluster for this type of scenario. A blank OVM will be created and assigned validator keys, along with a splitter contract for distributing rewards. Adjust the number of OVMs, splitters, and their key counts for your use case. Administratorship of the OVMs and splitters will be given to a private key that will sit in a secure back end API server, and when a customer triggers an allocation of an OVM, the API server private key will make the necessary updates to an unallocated OVM, and then revoke its control over the smart contracts, leaving them ready for the customer's deposit.

The Hoodi testnet will be used for all examples.

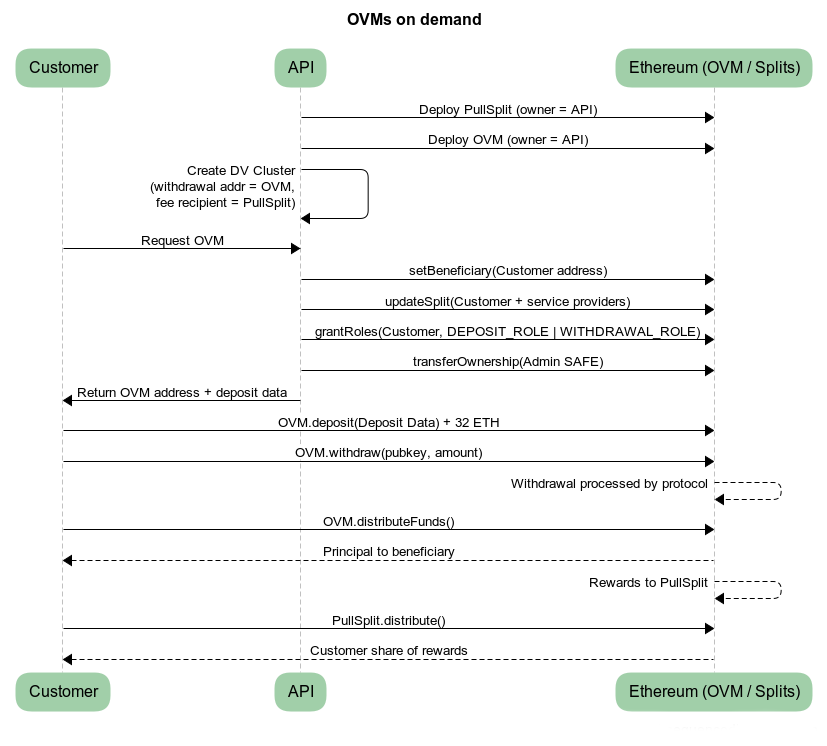

Diagram of the on-demand Obol Validator Manager pre-deploy workflow.

warning

The following code snippets are minimal examples for the purpose of achieving the desired functionality. These should not be run in production without thorough testing and review.

OVM roles at a glance

The OVM uses a bitwise role system for permissioned actions. The owner (set in the constructor) holds all powers and can grantRoles() to other addresses. The table is an operational summary; see Obol Validator Manager for the full conceptual reference.

Role	Hex	Authorizes
`owner`	—	Every gated method below, plus `grantRoles`, `revokeRoles`, `transferOwnership`, `renounceOwnership`, and the combined `transfer(newBeneficiary, newOwner)` shortcut.
`WITHDRAWAL_ROLE`	`0x01`	`withdraw()` — initiate partial or full validator withdrawals (EIP-7002).
`CONSOLIDATION_ROLE`	`0x02`	`consolidate()` — merge validators or upgrade a `0x01` validator to `0x02` via self-consolidation.
`SET_BENEFICIARY_ROLE`	`0x04`	`setBeneficiary()` (change principal recipient) and `setAmountOfPrincipalStake()` (correct principal accounting).
`RECOVER_FUNDS_ROLE`	`0x08`	`recoverFunds()` — sweep stuck ERC20 balances. ETH cannot be recovered through this method.
`SET_REWARD_ROLE`	`0x10`	`setRewardRecipient()` — change the reward destination.
`DEPOSIT_ROLE`	`0x20`	`deposit()` — fund a validator through the OVM so principal accounting updates.

distributeFunds(), distributeFundsPull(), and withdrawPullBalance() are permissionless. principalThreshold is set at deployment and is immutable — if a different threshold is needed, deploy a fresh OVM.

warning

DEPOSIT_ROLE only gates OVM.deposit(). The canonical Ethereum deposit contract (0x00000000219ab540356cBB839Cbe05303d7705Fa) is permissionless — anyone holding the validator pubkey can submit a deposit directly to it with the OVM as withdrawal credentials, bypassing the OVM's principal accounting. Use setAmountOfPrincipalStake() to correct the recorded principal in that case.

Pre-requisites

To keep the cast examples neat, we'll declare the key addresses upfront here, and refer to them as environment variables in each cast command.

# You need an RPC for your commands to reach the Ethereum network. Use one for the correct chain.
export RPC_URL=https://ethereum-hoodi-rpc.publicnode.com
#export RPC_URL=https://ethereum-rpc.publicnode.com

# This address will be the in case of emergency break glass address for all OVMs.
# This address has custody of the funds and can modify all roles.
# Consider if this address should be the end user, burned outright,
# or a trusted, high threshold SAFE account in case of issue.
export ADMIN_SAFE_ADDRESS=0xFallbackSafeAddressHere

# The private key corresponding to this address should run in your API service
# This address will have temporary control over the OVM until a User requests it
# Create a keypair with `cast wallet new` and send it some Ether for transaction fees.
export BACKEND_API_ADDRESS=0xPublicAddressForAPIWallet
# The corresponding private key. (Make sure you don't commit it to version control!)
export BACKEND_API_PRIVATE_KEY=0xPrivateKeyForAnAPIWallet

# The address of the OVM factory on Hoodi
export OBOL_VALIDATOR_MANAGER_FACTORY_ADDRESS=0x5754C8665B7e7BF15E83fCdF6d9636684B782b12
# The address of the OVM factory address on **Mainnet**
#export OBOL_VALIDATOR_MANAGER_FACTORY_ADDRESS=0x2c26B5A373294CaccBd3DE817D9B7C6aea7De584

# Pull Split Factory Address
export PULL_SPLIT_FACTORY_ADDRESS=0x6B9118074aB15142d7524E8c4ea8f62A3Bdb98f1
# https://etherscan.io/address/0x6B9118074aB15142d7524E8c4ea8f62A3Bdb98f1#code

Fee Splitting

A key decision when it comes to preparing a Distributed Validator is how Node Operators and Service providers can be non-custodially compensated for their services. Obol Validator Managers are built to leverage Splits.org split contracts. For this demo, split contracts will be pre-created with the unallocated OVMs, and edited for customers as they appear. You may want to consider smoothing MEV across your customers using a pair of nested splitters. This is described in more detail at the end of the guide.

Contract Deployment

A safe and convenient way to deploy an OVM contract is through the existing contract factory. A splitter contract can be deployed in a similar fashion.

Cast
Forge
TypeScript

# Create a PullSplit owned by the backend API
cast send $PULL_SPLIT_FACTORY_ADDRESS \
  "createSplit((address[],uint256[],uint256,uint16),address,address)" \
  "([$BACKEND_API_ADDRESS],[1000000],1000000,0)" $BACKEND_API_ADDRESS $BACKEND_API_ADDRESS \
  --rpc-url $RPC_URL \
  --private-key $BACKEND_API_PRIVATE_KEY

# Create an OVM owned by the backend API, with placeholder beneficiary
cast send $OBOL_VALIDATOR_MANAGER_FACTORY_ADDRESS \
  "createObolValidatorManager(address,address,address,uint64)" \
  $BACKEND_API_ADDRESS $BACKEND_API_ADDRESS 0xYourRecentlyDeployedPullSplit 16000000000 \
  --rpc-url $RPC_URL \
  --private-key $BACKEND_API_PRIVATE_KEY

// SPDX-License-Identifier: MIT
pragma solidity ^0.8.19;

import {Script, console} from "forge-std/Script.sol";

interface IPullSplitFactory {
    function createSplit(
        SplitParams calldata params,
        address owner,
        address creator
    ) external returns (address split);
}

struct SplitParams {
    address[] recipients;
    uint256[] allocations;
    uint256 totalAllocation;
    uint16 distributionIncentive;
}

interface IObolValidatorManagerFactory {
    function createObolValidatorManager(
        address owner,
        address beneficiary,
        address rewardRecipient,
        uint64 principalThreshold
    ) external returns (address ovm);
}

contract DeployOVMAndSplit is Script {
    address constant OBOL_VALIDATOR_MANAGER_FACTORY_ADDRESS = 0x5754C8665B7e7BF15E83fCdF6d9636684B782b12;
    address constant PULL_SPLIT_FACTORY_ADDRESS = 0x6B9118074aB15142d7524E8c4ea8f62A3Bdb98f1;
    address constant BACKEND_API_ADDRESS = 0xPublicAddressForAPIWallet;

    function run() external {
        vm.startBroadcast();

        // Step 1: Deploy the PullSplit via the factory
        address[] memory recipients = new address[](1);
        recipients[0] = BACKEND_API_ADDRESS;

        uint256[] memory allocations = new uint256[](1);
        allocations[0] = 1_000_000;

        address pullSplit = IPullSplitFactory(PULL_SPLIT_FACTORY_ADDRESS).createSplit(
            SplitParams({
                recipients: recipients,
                allocations: allocations,
                totalAllocation: 1_000_000,
                distributionIncentive: 0
            }),
            BACKEND_API_ADDRESS, // owner
            BACKEND_API_ADDRESS  // creator
        );

        console.log("PullSplit deployed at:", pullSplit);

        // Step 2: Deploy the OVM via the factory, with the PullSplit as rewardRecipient
        address ovm = IObolValidatorManagerFactory(OBOL_VALIDATOR_MANAGER_FACTORY_ADDRESS).createObolValidatorManager(
            BACKEND_API_ADDRESS,  // owner (API wallet)
            BACKEND_API_ADDRESS,  // beneficiary (placeholder, updated during onboarding)
            pullSplit,            // rewardRecipient (the PullSplit we just deployed)
            16_000_000_000        // 16 ETH in gwei (recommended principal threshold)
        );

        console.log("ObolValidatorManager deployed at:", ovm);

        vm.stopBroadcast();
    }
}

import {
  createWalletClient,
  createPublicClient,
  http,
  parseAbi,
  parseEventLogs,
} from "viem";
import { privateKeyToAccount } from "viem/accounts";
import { hoodi } from "viem/chains";

// Factory contract addresses (already deployed)
const OBOL_VALIDATOR_MANAGER_FACTORY_ADDRESS = "0x5754C8665B7e7BF15E83fCdF6d9636684B782b12";
const PULL_SPLIT_FACTORY_ADDRESS = "0x6B9118074aB15142d7524E8c4ea8f62A3Bdb98f1";

const BACKEND_API_ADDRESS = "0xPublicAddressForAPIWallet";

// Minimal ABIs for the factories
const splitFactoryAbi = parseAbi([
  "function createSplit((address[],uint256[],uint256,uint16),address,address) external returns (address split)",
]);

const ovmFactoryAbi = parseAbi([
  "function createObolValidatorManager(address owner, address beneficiary, address rewardRecipient, uint64 principalThreshold) external returns (address ovm)",
  "event CreateObolValidatorManager(address indexed ovm, address indexed owner, address beneficiary, address rewardRecipient, uint64 principalThreshold)",
]);

// Set up account from private key (the backend API key)
const account = privateKeyToAccount("0x...");

const walletClient = createWalletClient({
  account,
  chain: hoodi,
  transport: http("https://ethereum-hoodi-rpc.publicnode.com"),
});

const publicClient = createPublicClient({
  chain: hoodi,
  transport: http("https://ethereum-hoodi-rpc.publicnode.com"),
});

// Step 1: Deploy the PullSplit via the factory
const splitHash = await walletClient.writeContract({
  address: PULL_SPLIT_FACTORY_ADDRESS,
  abi: splitFactoryAbi,
  functionName: "createSplit",
  args: [
    {
      recipients: [BACKEND_API_ADDRESS],
      allocations: [1_000_000n],
      totalAllocation: 1_000_000n,
      distributionIncentive: 0,
    },
    BACKEND_API_ADDRESS, // owner
    BACKEND_API_ADDRESS, // creator
  ],
});

console.log("PullSplit deploy tx:", splitHash);
const splitReceipt = await publicClient.waitForTransactionReceipt({ hash: splitHash });

// Extract the PullSplit address from the transaction logs
// (adjust based on the factory's event signature)
const pullSplitAddress = splitReceipt.logs[0].address;
console.log("PullSplit deployed at:", pullSplitAddress);

// Step 2: Deploy the OVM via the factory, with the PullSplit as rewardRecipient
const ovmHash = await walletClient.writeContract({
  address: OBOL_VALIDATOR_MANAGER_FACTORY_ADDRESS,
  abi: ovmFactoryAbi,
  functionName: "createObolValidatorManager",
  args: [
    BACKEND_API_ADDRESS,  // owner (API wallet)
    BACKEND_API_ADDRESS,  // beneficiary (placeholder, updated during onboarding)
    pullSplitAddress,     // rewardRecipient (the PullSplit we just deployed)
    16_000_000_000n,      // 16 ETH in gwei (recommended principal threshold)
  ],
});

console.log("OVM deploy tx:", ovmHash);
const ovmReceipt = await publicClient.waitForTransactionReceipt({ hash: ovmHash });

const logs = parseEventLogs({
  abi: ovmFactoryAbi,
  logs: ovmReceipt.logs,
  eventName: "CreateObolValidatorManager",
});

const ovmAddress = logs[0].args.ovm;
console.log("ObolValidatorManager deployed at:", ovmAddress);

After you have deployed an Obol Validator Manager contract, let's save its address and an example customer address as environment variables to make the rest of the cast demo easier.

# The created OVM from the factory
export EXAMPLE_OVM_ADDRESS=0xYourRecentlyDeployedOVM

# The created PullSplit from the factory
export EXAMPLE_PULL_SPLIT_ADDRESS=0xYourRecentlyDeployedPullSplit

# An address of a hypothetical new customer
export EXAMPLE_CUSTOMER_ADDRESS=0xCustomerAddress

# A private key of a new customer. (Demo Only. Don't use raw customer private keys in practice)
export EXAMPLE_CUSTOMER_PRIVATE_KEY=0xCustomerPrivateKey

Create the DV Cluster

At this point, you can prepare a DV cluster pointed at these OVMs and split contracts. Use the charon create cluster ... --publish command if you are controlling the validator keys centrally, or charon create dkg ... ---publish if you have a group of operators taking part in the cluster. Comma separate the --withdrawal-addresses and --fee-recipient-addresses flags with your created OVMs and Pull Splits. Once you complete the key creation, you can load these artifacts into your nodes and get the cluster online and ready for deposits. At this point the last remaining action will be with the API key, which will change the ownership of an OVM to make it ready for deposits.

Assigning the Contracts to Customers

When a capital allocator (customer) is onboarding, the pre-created contracts can be assigned to that entity. The principal beneficiary address is updated to the entity's preferred address, permissions are allocated to the customer and backend's addresses as needed, and then ownership of the OVMs are transferred or burned.

Cast
Forge
TypeScript

# Set the beneficiary address to the customer
cast send $EXAMPLE_OVM_ADDRESS \
  "setBeneficiary(address)" \
  $EXAMPLE_CUSTOMER_ADDRESS \
  --rpc-url $RPC_URL \
  --private-key $BACKEND_API_PRIVATE_KEY

# Modify the splitter to include the customer and service providers (example is 90/10 split customer/admin address)
cast send $EXAMPLE_PULL_SPLIT_ADDRESS \
  "updateSplit(address[],uint256[],uint256,uint16)" \
  "[$EXAMPLE_CUSTOMER_ADDRESS,$ADMIN_SAFE_ADDRESS]" "[900000,100000]" 1000000 0 \
  --rpc-url $RPC_URL \
  --private-key $BACKEND_API_PRIVATE_KEY

# Grant the customer the DEPOSIT_ROLE and WITHDRAWAL_ROLE
# 0x21 = DEPOSIT_ROLE (0x20) | WITHDRAWAL_ROLE (0x01) = 33 in decimal
cast send $EXAMPLE_OVM_ADDRESS \
  "grantRoles(address,uint256)" \
  $EXAMPLE_CUSTOMER_ADDRESS 0x21 \
  --rpc-url $RPC_URL \
  --private-key $BACKEND_API_PRIVATE_KEY

# [OPTIONAL] If the backend service needs the ability to trigger
# partial (or full) withdrawals, grant it the WITHDRAWAL_ROLE.
# Warning; This allows this address to selectively charge fees on principal
cast send $EXAMPLE_OVM_ADDRESS \
  "grantRoles(address,uint256)" \
  $BACKEND_API_ADDRESS 1 \
  --rpc-url $RPC_URL \
  --private-key $BACKEND_API_PRIVATE_KEY

// SPDX-License-Identifier: MIT
pragma solidity ^0.8.19;

import {Script, console} from "forge-std/Script.sol";

interface IObolValidatorManager {
    function setBeneficiary(address newBeneficiary) external;
    function grantRoles(address user, uint256 roles) external payable;
}

interface IPullSplit {
    function updateSplit(
        address[] calldata recipients,
        uint256[] calldata allocations,
        uint256 totalAllocation,
        uint16 distributionIncentive
    ) external;
}

contract AssignToCustomer is Script {
    address constant OVM_ADDRESS = 0xYourOVMAddress;
    address constant PULL_SPLIT_ADDRESS = 0xYourPullSplitAddress;
    address constant CUSTOMER_ADDRESS = 0xCustomerAddress;
    address constant ADMIN_SAFE_ADDRESS = 0xFallbackSafeAddressHere;

    uint256 constant WITHDRAWAL_ROLE = 0x01;
    uint256 constant DEPOSIT_ROLE = 0x20;

    function run() external {
        vm.startBroadcast();

        IObolValidatorManager ovm = IObolValidatorManager(OVM_ADDRESS);

        // Set the beneficiary to the customer address
        ovm.setBeneficiary(CUSTOMER_ADDRESS);
        console.log("Beneficiary set to:", CUSTOMER_ADDRESS);

        // Update the splitter to include the customer and service providers (90/10 split)
        address[] memory recipients = new address[](2);
        recipients[0] = CUSTOMER_ADDRESS;
        recipients[1] = ADMIN_SAFE_ADDRESS;

        uint256[] memory allocations = new uint256[](2);
        allocations[0] = 900_000;
        allocations[1] = 100_000;

        IPullSplit(PULL_SPLIT_ADDRESS).updateSplit(recipients, allocations, 1_000_000, 0);
        console.log("PullSplit updated with customer and service provider shares");

        // Grant the customer deposit and withdrawal roles
        ovm.grantRoles(CUSTOMER_ADDRESS, WITHDRAWAL_ROLE | DEPOSIT_ROLE);
        console.log("Customer assigned deposit and withdrawal roles");

        vm.stopBroadcast();
    }
}

import { createWalletClient, createPublicClient, http, parseAbi } from "viem";
import { privateKeyToAccount } from "viem/accounts";
import { hoodi } from "viem/chains";

// The deployed OVM and PullSplit addresses
const OVM_ADDRESS = "0xYourOVMAddress";
const PULL_SPLIT_ADDRESS = "0xYourPullSplitAddress";

// The customer address to receive principal deposits
const CUSTOMER_ADDRESS = "0xCustomerAddress";

// Admin safe for service provider fee share
const ADMIN_SAFE_ADDRESS = "0xFallbackSafeAddressHere";

// Role bitmasks from the contract
const WITHDRAWAL_ROLE = 0x01n;
const DEPOSIT_ROLE = 0x20n;

// Combine roles using bitwise OR
const ROLES_TO_GRANT = WITHDRAWAL_ROLE | DEPOSIT_ROLE; // 0x21

const ovmAbi = parseAbi([
  "function setBeneficiary(address newBeneficiary) external",
  "function grantRoles(address user, uint256 roles) external payable",
]);

const pullSplitAbi = parseAbi([
  "function updateSplit(address[],uint256[],uint256,uint16) external",
]);

// Use the backend API key
const account = privateKeyToAccount("0xBackendAPIPrivateKey...");

const walletClient = createWalletClient({
  account,
  chain: hoodi,
  transport: http("https://ethereum-hoodi-rpc.publicnode.com"),
});

const publicClient = createPublicClient({
  chain: hoodi,
  transport: http("https://ethereum-hoodi-rpc.publicnode.com"),
});

// Step 1: Set the beneficiary to the customer address
const hash1 = await walletClient.writeContract({
  address: OVM_ADDRESS,
  abi: ovmAbi,
  functionName: "setBeneficiary",
  args: [CUSTOMER_ADDRESS],
});

console.log("Set beneficiary tx:", hash1);
await publicClient.waitForTransactionReceipt({ hash: hash1 });
console.log("Beneficiary set to:", CUSTOMER_ADDRESS);

// Step 2: Update the splitter to include customer and service providers (90/10 split)
const hash2 = await walletClient.writeContract({
  address: PULL_SPLIT_ADDRESS,
  abi: pullSplitAbi,
  functionName: "updateSplit",
  args: [
    [CUSTOMER_ADDRESS, ADMIN_SAFE_ADDRESS],
    [900_000n, 100_000n],
    1_000_000n,
    0,
  ],
});

console.log("Update split tx:", hash2);
await publicClient.waitForTransactionReceipt({ hash: hash2 });
console.log("PullSplit updated with customer and service provider shares");

// Step 3: Grant the customer deposit and withdrawal roles
const hash3 = await walletClient.writeContract({
  address: OVM_ADDRESS,
  abi: ovmAbi,
  functionName: "grantRoles",
  args: [CUSTOMER_ADDRESS, ROLES_TO_GRANT],
});

console.log("Grant roles tx:", hash3);
await publicClient.waitForTransactionReceipt({ hash: hash3 });
console.log("Deposit and withdrawal role assigned to customer");

Transferring Ownership

warning

This is a crucial step, and failure to adequately secure the ownership of an OVM could lead to a loss or theft of funds. Ensure you trust the owner() address of an OVM before making a deposit.

The last step before the OVM is ready for activation is to transfer the ownership of the OVM away from the backend, to either the customer, or an extremely well secured administrative multi-sig wallet like a SAFE that can intervene to update key values in future if needed. Consider that the owner of an OVM has custodial control over it.

Cast
Forge
TypeScript

cast send $EXAMPLE_OVM_ADDRESS \
  "transferOwnership(address)" \
  $ADMIN_SAFE_ADDRESS \
  --rpc-url $RPC_URL \
  --private-key $BACKEND_API_PRIVATE_KEY

// SPDX-License-Identifier: MIT
pragma solidity ^0.8.19;

import {Script, console} from "forge-std/Script.sol";

interface IObolValidatorManager {
    function transferOwnership(address newOwner) external payable;
}

contract TransferOwnership is Script {
    address constant OVM_ADDRESS = 0xYourOVMAddress;
    address constant SAFE_ADDRESS = 0xYourSafeAddress;

    function run() external {
        vm.startBroadcast();

        IObolValidatorManager(OVM_ADDRESS).transferOwnership(SAFE_ADDRESS);

        console.log("Ownership transferred to SAFE:", SAFE_ADDRESS);

        vm.stopBroadcast();
    }
}

import { createWalletClient, createPublicClient, http, parseAbi } from "viem";
import { privateKeyToAccount } from "viem/accounts";
import { hoodi } from "viem/chains";

// The deployed OVM address
const OVM_ADDRESS = "0xYourOVMAddress";

// The SAFE wallet address to transfer ownership to
const SAFE_ADDRESS = "0xYourSafeAddress";

const ovmAbi = parseAbi([
  "function transferOwnership(address newOwner) external payable",
]);

// The backend API address that currently owns the OVM
const account = privateKeyToAccount("0x...");

const walletClient = createWalletClient({
  account,
  chain: hoodi,
  transport: http("https://ethereum-hoodi-rpc.publicnode.com"),
});

const publicClient = createPublicClient({
  chain: hoodi,
  transport: http("https://ethereum-hoodi-rpc.publicnode.com"),
});

// Transfer ownership to the SAFE
const hash = await walletClient.writeContract({
  address: OVM_ADDRESS,
  abi: ovmAbi,
  functionName: "transferOwnership",
  args: [SAFE_ADDRESS],
});

console.log("Transfer ownership tx:", hash);
await publicClient.waitForTransactionReceipt({ hash: hash });

console.log("Ownership transferred to SAFE:", SAFE_ADDRESS);

Handling Deposits

The capital allocator can now deposit the validators that point to this withdrawal address. The validator keys are held by the provisioned DV cluster operators and the deposit data was created during cluster creation.

This step would normally be through a wallet and web interface. This example using raw private keys is for demo purposes only.

info

To accurately differentiate reward from principal in an OVM, the OVM contract needs to be invoked during the deposit call. Each OVM has a deposit() function exactly matching and wrapping the official deposit smart contract, and should be used for that purpose.

If a deposit is made not through the OVM, the OVM can be updated with the setAmountOfPrincipalStake() method by the owner or an address with the SET_BENEFICIARY_ROLE.

Cast
Forge
TypeScript

cast send $EXAMPLE_OVM_ADDRESS \
  "deposit(bytes,bytes,bytes,bytes32)" \
  0x<pubkey_48_bytes> \
  0x<withdrawal_credentials_32_bytes> \
  0x<signature_96_bytes> \
  0x<deposit_data_root_32_bytes> \
  --value 32ether \
  --rpc-url $RPC_URL \
  --private-key $EXAMPLE_CUSTOMER_PRIVATE_KEY

// SPDX-License-Identifier: MIT
pragma solidity ^0.8.19;

import {Script, console} from "forge-std/Script.sol";

interface IObolValidatorManager {
    function deposit(
        bytes calldata pubkey,
        bytes calldata withdrawal_credentials,
        bytes calldata signature,
        bytes32 deposit_data_root
    ) external payable;
}

contract Deposit is Script {
    address constant OVM_ADDRESS = 0xYourOVMAddress;

    function run() external {
        // Deposit data (parsed from deposit-data.json)
        bytes memory pubkey = hex"..."; // 48 bytes
        bytes memory withdrawal_credentials = hex"..."; // 32 bytes
        bytes memory signature = hex"..."; // 96 bytes
        bytes32 deposit_data_root = hex"..."; // 32 bytes

        vm.startBroadcast();

        // Deposit 32 ETH to activate a validator
        IObolValidatorManager(OVM_ADDRESS).deposit{value: 32 ether}(
            pubkey,
            withdrawal_credentials,
            signature,
            deposit_data_root
        );

        console.log("Deposit complete - validator activation pending");

        vm.stopBroadcast();
    }
}

import { createWalletClient, createPublicClient, http, parseAbi } from "viem";
import { privateKeyToAccount } from "viem/accounts";
import { hoodi } from "viem/chains";

// The deployed OVM address
const OVM_ADDRESS = "0xYourOVMAddress";

// Deposit data (parsed from deposit-data.json)
const pubkey = "0x..."; // 48 bytes
const withdrawal_credentials = "0x..."; // 32 bytes
const signature = "0x..."; // 96 bytes
const deposit_data_root = "0x..."; // 32 bytes

const ovmAbi = parseAbi([
  "function deposit(bytes calldata pubkey, bytes calldata withdrawal_credentials, bytes calldata signature, bytes32 deposit_data_root) external payable",
]);

// Use the customer key (has DEPOSIT_ROLE), normally do this via wallet connection
const account = privateKeyToAccount("0xCustomerPrivateKey...");

const walletClient = createWalletClient({
  account,
  chain: hoodi,
  transport: http("https://ethereum-hoodi-rpc.publicnode.com"),
});

const publicClient = createPublicClient({
  chain: hoodi,
  transport: http("https://ethereum-hoodi-rpc.publicnode.com"),
});

// Deposit 32 ETH to activate a validator
const hash = await walletClient.writeContract({
  address: OVM_ADDRESS,
  abi: ovmAbi,
  functionName: "deposit",
  args: [pubkey, withdrawal_credentials, signature, deposit_data_root],
  value: 32_000_000_000_000_000_000n, // 32 ETH in wei
});

console.log("Deposit tx:", hash);
await publicClient.waitForTransactionReceipt({ hash: hash });
console.log("Deposit complete - validator activation pending");

The validator(s) will enter the activation queue and the amountOfPrincipalStake value on the contract will track how much of the balance is considered the principal (owed to the beneficiary). The EL and CL rewards from any targeting validators will be sent to the OVM contract and Pull Split.

Upgrading a 0x01 validator to 0x02 (self-consolidation)

If a validator pointing at the OVM was deposited with 0x01 withdrawal credentials, its effective-balance ceiling is 32 ETH. Calling consolidate() with the validator's pubkey as both the source and the target upgrades it to 0x02 in place, raising the effective-balance ceiling to 2048 ETH and enabling reward compounding. The validator continues attesting through the upgrade — it is not exited.

info

The validator must be active with a balance greater than 32 ETH for the consolidation to succeed. The call must come from the OVM owner or an address holding CONSOLIDATION_ROLE (0x02). Self-consolidation is the only path that converts an existing 0x01 validator to 0x02 — a fresh deposit cannot do it.

EIP-7251 consolidation requests carry a small fee that scales with mempool pressure. Send enough ETH as msg.value to cover the fee; any excess is refunded to the excessFeeRecipient address.

Cast
Forge
TypeScript

cast send $EXAMPLE_OVM_ADDRESS \
  "consolidate((bytes[],bytes)[],uint256,address)" \
  "[([0x<validator_pubkey_48_bytes>],0x<validator_pubkey_48_bytes>)]" \
  1000000000000000 \
  $BACKEND_API_ADDRESS \
  --value 0.001ether \
  --rpc-url $RPC_URL \
  --private-key $BACKEND_API_PRIVATE_KEY

// SPDX-License-Identifier: MIT
pragma solidity ^0.8.19;

import {Script, console} from "forge-std/Script.sol";

interface IObolValidatorManager {
    struct ConsolidationRequest {
        bytes[] srcPubKeys;
        bytes targetPubKey;
    }

    function consolidate(
        ConsolidationRequest[] calldata requests,
        uint256 maxFeePerConsolidation,
        address excessFeeRecipient
    ) external payable;
}

contract SelfConsolidate is Script {
    address constant OVM_ADDRESS = 0xYourOVMAddress;

    // Validator public key (48 bytes) of the 0x01 validator to upgrade
    bytes constant VALIDATOR_PUBKEY = hex"abc123YourValidatorPubkey";

    // Maximum fee willing to pay per consolidation request
    uint256 constant MAX_FEE_PER_CONSOLIDATION = 0.001 ether;

    function run() external {
        vm.startBroadcast();

        bytes[] memory srcPubKeys = new bytes[](1);
        srcPubKeys[0] = VALIDATOR_PUBKEY;

        IObolValidatorManager.ConsolidationRequest[] memory requests =
            new IObolValidatorManager.ConsolidationRequest[](1);
        requests[0] = IObolValidatorManager.ConsolidationRequest({
            srcPubKeys: srcPubKeys,
            targetPubKey: VALIDATOR_PUBKEY
        });

        IObolValidatorManager(OVM_ADDRESS).consolidate{value: MAX_FEE_PER_CONSOLIDATION}(
            requests,
            MAX_FEE_PER_CONSOLIDATION,
            msg.sender // Excess fee refunded here
        );

        console.log("Self-consolidation requested - validator upgrading from 0x01 to 0x02");

        vm.stopBroadcast();
    }
}

import { createWalletClient, createPublicClient, http, parseAbi } from "viem";
import { privateKeyToAccount } from "viem/accounts";
import { hoodi } from "viem/chains";

// The deployed OVM address
const OVM_ADDRESS = "0xYourOVMAddress";

// Validator public key (48 bytes) of the 0x01 validator to upgrade
const VALIDATOR_PUBKEY = "0xabc123YourValidatorPubkey";

// Maximum fee willing to pay per consolidation request
const MAX_FEE_PER_CONSOLIDATION = 1_000_000_000_000_000n; // 0.001 ETH

const ovmAbi = parseAbi([
  "struct ConsolidationRequest { bytes[] srcPubKeys; bytes targetPubKey; }",
  "function consolidate(ConsolidationRequest[] requests, uint256 maxFeePerConsolidation, address excessFeeRecipient) external payable",
]);

// Use a key with CONSOLIDATION_ROLE (or the owner)
const account = privateKeyToAccount("0xBackendAPIPrivateKey...");

const walletClient = createWalletClient({
  account,
  chain: hoodi,
  transport: http("https://ethereum-hoodi-rpc.publicnode.com"),
});

const publicClient = createPublicClient({
  chain: hoodi,
  transport: http("https://ethereum-hoodi-rpc.publicnode.com"),
});

// Self-consolidation: source and target are the same pubkey
const hash = await walletClient.writeContract({
  address: OVM_ADDRESS,
  abi: ovmAbi,
  functionName: "consolidate",
  args: [
    [{ srcPubKeys: [VALIDATOR_PUBKEY], targetPubKey: VALIDATOR_PUBKEY }],
    MAX_FEE_PER_CONSOLIDATION,
    account.address, // Excess fee refunded here
  ],
  value: MAX_FEE_PER_CONSOLIDATION,
});

console.log("Self-consolidation tx:", hash);
await publicClient.waitForTransactionReceipt({ hash: hash });
console.log("Self-consolidation requested - validator upgrading from 0x01 to 0x02");

Once the beacon chain processes the request, the validator's withdrawal type flips to 0x02 and its effective-balance ceiling rises. Subsequent top-up deposits up to 2048 ETH are then retained on the validator rather than being swept as partial withdrawals.

Withdrawing Validator Balance

Compounding validators (0x02 type) can have part of their principal withdrawn from active stake, or be fully exited, via the same withdraw() call. Specifying a nonzero value for amounts will initiate a partial withdrawal, while 0 will fully exit the validator. You cannot specify an amount that will leave the validator with less than 32 ether in active stake remaining.

warning

There is an important nuance when it comes to partial withdrawals. With an OVM (on the default settings), it will treat a withdrawal of less than 16 ether as rewards rather than principal. A customer should not withdraw less than this amount of principal or they may be charged fees on it. Similarly, care must be taken with the WITHDRAWAL_ROLE; although it does not allow the changing of who gets rewards, it can cause this 'over-charging' behavior by doing repeated small withdrawals.

Cast
Forge
TypeScript

cast send $EXAMPLE_OVM_ADDRESS \
  "withdraw(bytes[],uint64[],uint256,address)" \
  "[0x<validator_pubkey_48_bytes>]" \
  "[16000000000]" \
  1000000000000000 \
  0xYourRefundAddress \
  --value 0.001ether \
  --rpc-url $RPC_URL \
  --private-key $BACKEND_API_PRIVATE_KEY

// SPDX-License-Identifier: MIT
pragma solidity ^0.8.19;

import {Script, console} from "forge-std/Script.sol";

interface IObolValidatorManager {
    function withdraw(
        bytes[] calldata pubKeys,
        uint64[] calldata amounts,
        uint256 maxFeePerWithdrawal,
        address excessFeeRecipient
    ) external payable;
}

contract PartialWithdrawal is Script {
    address constant OVM_ADDRESS = 0xYourOVMAddress;

    // Validator public key (48 bytes)
    bytes constant VALIDATOR_PUBKEY = hex"abc123YourValidatorPubkey";

    // Amount to withdraw in gwei (16 ETH)
    uint64 constant WITHDRAWAL_AMOUNT = 16_000_000_000;

    // Maximum fee willing to pay per withdrawal request
    uint256 constant MAX_FEE_PER_WITHDRAWAL = 0.001 ether;

    function run() external {
        vm.startBroadcast();

        bytes[] memory pubKeys = new bytes[](1);
        pubKeys[0] = VALIDATOR_PUBKEY;

        uint64[] memory amounts = new uint64[](1);
        amounts[0] = WITHDRAWAL_AMOUNT;

        IObolValidatorManager(OVM_ADDRESS).withdraw{value: MAX_FEE_PER_WITHDRAWAL}(
            pubKeys,
            amounts,
            MAX_FEE_PER_WITHDRAWAL,
            msg.sender // Excess fee refunded here
        );

        console.log("Partial withdrawal requested for 16 ETH");

        vm.stopBroadcast();
    }
}

import { createWalletClient, createPublicClient, http, parseAbi } from "viem";
import { privateKeyToAccount } from "viem/accounts";
import { hoodi } from "viem/chains";

// The deployed OVM address
const OVM_ADDRESS = "0xYourOVMAddress";

// Validator public key (48 bytes)
const VALIDATOR_PUBKEY = "0xabc123YourValidatorPubkey";

// Amount to withdraw in gwei (16 ETH = 16,000,000,000 gwei)
const WITHDRAWAL_AMOUNT = 16_000_000_000n;

// Maximum fee willing to pay per withdrawal request
const MAX_FEE_PER_WITHDRAWAL = 1_000_000_000_000_000n; // 0.001 ETH

const ovmAbi = parseAbi([
  "function withdraw(bytes[] calldata pubKeys, uint64[] calldata amounts, uint256 maxFeePerWithdrawal, address excessFeeRecipient) external payable",
]);

// Use the secondary key (has WITHDRAWAL_ROLE)
const account = privateKeyToAccount("0xSecondaryKeyPrivateKey...");

const walletClient = createWalletClient({
  account,
  chain: hoodi,
  transport: http("https://ethereum-hoodi-rpc.publicnode.com"),
});

const publicClient = createPublicClient({
  chain: hoodi,
  transport: http("https://ethereum-hoodi-rpc.publicnode.com"),
});

// Request partial withdrawal of 16 ETH
const hash = await walletClient.writeContract({
  address: OVM_ADDRESS,
  abi: ovmAbi,
  functionName: "withdraw",
  args: [
    [VALIDATOR_PUBKEY],
    [WITHDRAWAL_AMOUNT],
    MAX_FEE_PER_WITHDRAWAL,
    account.address, // Excess fee refunded here
  ],
  value: MAX_FEE_PER_WITHDRAWAL, // Send enough to cover the fee
});

console.log("Partial withdrawal tx:", hash);
await publicClient.waitForTransactionReceipt({ hash: hash });
console.log(
  "Partial withdrawal requested - funds will arrive after protocol processes it"
);

Reward Distribution and Splitters

When withdrawals requested eventually exit the beacon chain, they appear on the OVM contract, and should be distributed to the rewardRecipient or principalRecipient (depending on if they amount to above or below the principalThreshold of 16 eth). Calling distributeFunds() will push the Ether to the correct address. Split contracts as principal or reward addresses will also need to be distributed from for the funds to land in their ultimate recipients addresses.

Cast
Forge
TypeScript

cast send $EXAMPLE_OVM_ADDRESS \
  "distributeFunds()" \
  --rpc-url $RPC_URL \
  --private-key $BACKEND_API_PRIVATE_KEY

// SPDX-License-Identifier: MIT
pragma solidity ^0.8.19;

import {Script, console} from "forge-std/Script.sol";

interface IObolValidatorManager {
    function distributeFunds() external;
}

contract DistributeFunds is Script {
    address constant OVM_ADDRESS = 0xYourOVMAddress;

    function run() external {
        vm.startBroadcast();

        IObolValidatorManager(OVM_ADDRESS).distributeFunds();
        console.log("Funds distributed to beneficiary and reward recipient");

        vm.stopBroadcast();
    }
}

import { createWalletClient, createPublicClient, http, parseAbi } from "viem";
import { privateKeyToAccount } from "viem/accounts";
import { hoodi } from "viem/chains";

// The deployed OVM address
const OVM_ADDRESS = "0xYourOVMAddress";

const ovmAbi = parseAbi(["function distributeFunds() external"]);

// Anyone can call distributeFunds - no special role required
const account = privateKeyToAccount("0x...");

const walletClient = createWalletClient({
  account,
  chain: hoodi,
  transport: http("https://ethereum-hoodi-rpc.publicnode.com"),
});

const publicClient = createPublicClient({
  chain: hoodi,
  transport: http("https://ethereum-hoodi-rpc.publicnode.com"),
});

// Distribute funds to beneficiary (principal) and rewardRecipient (rewards)
const hash = await walletClient.writeContract({
  address: OVM_ADDRESS,
  abi: ovmAbi,
  functionName: "distributeFunds",
});

console.log("Distribute funds tx:", hash);
await publicClient.waitForTransactionReceipt({ hash: hash });
console.log("Funds distributed to beneficiary and reward recipient");

Appendix: MEV Smoothing

If you setup validators where every customer gets their own fee recipient address (and underlying splitter), they will each get proposals rarely (approximately twice per year for a 32 ETH validator). Due to MEV being unequally distributed, only a small number of proposals in the year contain most of the MEV. This means that most of your users will get the median amount of Ether as MEV rather than the average, and may notice a lower APR versus setups that pool and distribute their variable rewards across their users. It may be beneficial for you to instead smooth the MEV being accrued through block proposals across all depositors in the cluster. This can be achieved through two nested split contracts as follows:

First create an editable PullSplit we'll refer to as the Child Split. The owner of this split should be the $BACKEND_API_ADDRESS.
Next create a second PullSplit we'll refer to as the Parent Split. It can be immutable if preferred. It should send the majority of its inflow to the Child Split, and some amount to a set of addresses that receive operating fees for the cluster.
Set the parent split as the --fee-recipient-address for all validators in the cluster. This means all proposal rewards for the cluster will go to this address.
When a customer makes a deposit, use the $BACKEND_API_PRIVATE_KEY to update the Child Split to proportionally reflect the eth provided by all customers to the cluster.
As proposals by the validators earn tips and MEV, this collects on the Split Contracts. Distributing these rewards sends the ether to the fee recipients and customers.

OVM roles at a glance​

Pre-requisites​

Fee Splitting​

Contract Deployment​

Create the DV Cluster​

Assigning the Contracts to Customers​

Transferring Ownership​

Handling Deposits​

Upgrading a 0x01 validator to 0x02 (self-consolidation)​

Withdrawing Validator Balance​

Reward Distribution and Splitters​

Appendix: MEV Smoothing​

OVM roles at a glance

Pre-requisites

Fee Splitting

Contract Deployment

Create the DV Cluster

Assigning the Contracts to Customers

Transferring Ownership

Handling Deposits

Upgrading a 0x01 validator to 0x02 (self-consolidation)

Withdrawing Validator Balance

Reward Distribution and Splitters

Appendix: MEV Smoothing
